TURBO Turbomolecular – Brownlee-Morrow Company

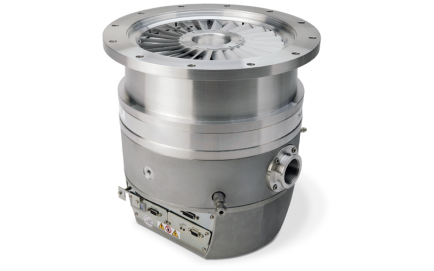

TURBO Turbomolecular

Manufacturer: Busch

Ultimate pressure: < 1·10 10-1·10 8 hPa (mbar) Pumping speed N2: 1080-2200 l/s Turbo is our product line of turbomolecular vacuum pumps. Turbo vacuum pumps have been developed for industrial high vacuum applications. Dry Turbo vacuum pumps work in the high vacuum range up to 1·10 10 hPa (mbar), allowing more gas to be conveyed without any operating fluids. Application orientated Even the highest loads or any unwanted gas leaks do not affect the high pumping speed of Turbo vacuum pumps. The vacuum pumps can be operated in any mounting position. The compact rotor design is unrivalled in its class and combines the highest pump capacity with the smallest dimensions. Operationally reliable and safe Drive unit and control system completely integrated into the pump housing and offers a standard sealing gas and flush connection. Applications Turbo vacuum pumps are ideal for use in numerous industrial high vacuum applications, such as: • Vacuum furnaces • Surface treatments • Coating units • Physical vapour deposition (PVD) • Thin film coating
