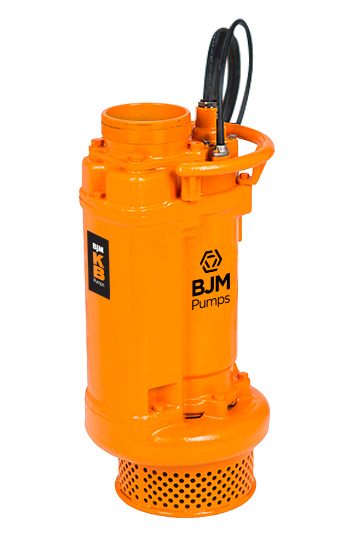

KBHF Series
Manufacturer: BJM Pumps
High temperature submersible pump offers heavy duty dewatering and high head capabilities for light slurry applications.
ABRASIVE RESISTANT CHROME IRON COMPONENTS:
• Agitator – Fluidizes settled solids into suspension.
• Wear plate – Replaceable hardened surface on the suction side where erosion would cause a loss of pump performance.
• Semi-open impeller to handle some solids.
EVERY KBHF PUMP MODEL IS PROTECTED BY:
• Class R motor insulation and built-in amperage (FLA) and temperature overload protection.
• Double mechanical seals – SiC/SiC – FKM lower and carbon ceramic FKM upper in a separate oil-filled seal chamber.
• Heavy duty lip seal – Additional protection for the mechanical seals.
• Stainless steel shaft and shaft sleeve – Save on shaft wear due to abrasives and corrosion.
THE KBHF SERIES ARE TOP DISCHARGE PUMPS:
• KBHF Series pumps are utility pumps and frequently dragged from one site to another. The KBHF doesn’t have a side discharge connection that can break off or be damaged as it is pulled and pushed into place.
• Top discharge pumps are cooled by pumped liquid – The KBHF pumps can pump a sump or pit down to within inches of the bottom. A side discharge pump without a cooling jacket must stay submerged to avoid overheating, leaving as much as three feet of unpumped slurry.
• Top discharge means slim – even the largest model with a 13.5 inch “waistline” will fit down a manhole with a hose attached. High-chrome agitator helps keep solids suspended in liquid and helps prevent pump from clogging.
• High-chrome agitator helps keep solids suspended in liquid and helps prevent pump from clogging.
• Specifications dependent on model and may change without notice.
• Agitator – Fluidizes settled solids into suspension.
• Wear plate – Replaceable hardened surface on the suction side where erosion would cause a loss of pump performance.
• Semi-open impeller to handle some solids.
EVERY KBHF PUMP MODEL IS PROTECTED BY:
• Class R motor insulation and built-in amperage (FLA) and temperature overload protection.
• Double mechanical seals – SiC/SiC – FKM lower and carbon ceramic FKM upper in a separate oil-filled seal chamber.
• Heavy duty lip seal – Additional protection for the mechanical seals.
• Stainless steel shaft and shaft sleeve – Save on shaft wear due to abrasives and corrosion.
THE KBHF SERIES ARE TOP DISCHARGE PUMPS:
• KBHF Series pumps are utility pumps and frequently dragged from one site to another. The KBHF doesn’t have a side discharge connection that can break off or be damaged as it is pulled and pushed into place.
• Top discharge pumps are cooled by pumped liquid – The KBHF pumps can pump a sump or pit down to within inches of the bottom. A side discharge pump without a cooling jacket must stay submerged to avoid overheating, leaving as much as three feet of unpumped slurry.
• Top discharge means slim – even the largest model with a 13.5 inch “waistline” will fit down a manhole with a hose attached. High-chrome agitator helps keep solids suspended in liquid and helps prevent pump from clogging.
• High-chrome agitator helps keep solids suspended in liquid and helps prevent pump from clogging.
• Specifications dependent on model and may change without notice.
