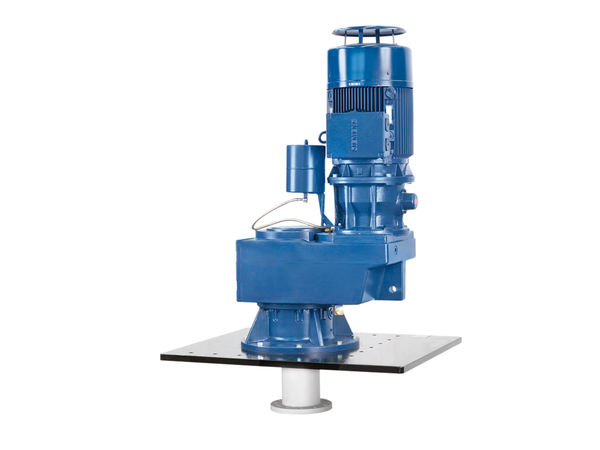

HWL A
Manufacturer: EKATO
The compact EKATO agitators FD, KD and HWL A are designed for open vessels or those which have a low pressure. Their robust design and excellent smoothness when operating make them extremely reliable, even when mixing media with high solid contents. Further advantages are the low overall height and the modular design which ensure maintenance at low cost and an easy modification of the agitator, if necessary.
*Drive versions with flator bevel gearbox
*Massiveor hollow shaft
*Divisible shaft with flange coupling
*Mounting flange or –plate
ADDITIONAL FEATURES:
*Strengthened bearing inside of the gearbox
*Available with a compact sealing lantern, including: v ring, shaft seal ring, water seal, safety labyrinth seal or, stuffing box
*Rubber coated shafts and impellers for highly abrasive and corrosive products with high solid contents (E.g. for flue gas desulfurization or processing of ore)
*Steady bearing
Motor Power0,75-400 kW
Shaft Diameter40-800 mm
Operating PressureAtmospheric – 4 bar
Impeller SystemsEKATO high efficiency impellers and conventional impellers
Materials (product wetted)Carbon steel, rust-& acid resistant steels, nickel base alloy, Duplex-& Super Duplex steels, titanium & titanium alloys, rubber coatings, coatings
ApprovalATEX 2014/34/EU & GOST TR ZU 010/2011
