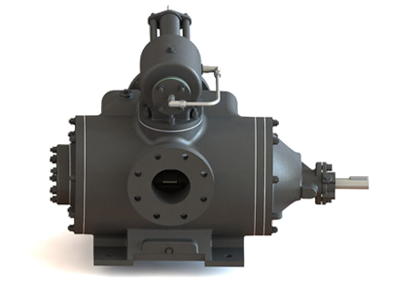

Horizontal Internal Bearing

Manufacturer: Roto Pumps

Internal Bearing RI series

Capacities up to 500 m3/hr
Pressures up to 40 bar
These pumps are designed for clean and lubricating media. The pumps are fitted with the bearings inside and the bearings are lubricated with the pumping media itself. Available in standard foot mounted configuration with sump heating arrangement as an option. Built in safety relief valve designed for 100% bypass.

Roto’s horizontal internal bearing Twin Screw pumps are available in standard foot mounted configuration with sump heating arrangement as an option.
These pumps are selected where the fluids are clean and have lubricating properties.
Mechanical seals are standard. Option for gland packing is also available. Pumps are fitted with relief valves suitable for 100% bypass. The suction and discharge ports are in line.

Paper
Sugar
Oil & Gas
Textile
Edible Oil
Marine
Power Plant
Steel
Secured

MATERIAL-OPTIONS:
-
-CASING:-
-•-Cast-Iron,-•-Cast-Steel,-•-Fabricated-Steel-•-Fabricated-Stainless-Steel.-
-LINER:-
-•-Case-Steel,-•-Stainless-Steel.-
-SCREWS:-
-•-Alloy-Steel-•-Stainless-Steel,-•-Hardened-Steel.-
-TIMING-GEARS:-
-•-Hardened-Steel.-
-OTHER-EXOTIC-MATERIALS:-
-•-Duplex-•-Super-Duplex-.-
-SCREW-SURFACE-COATING:-
-•-Hard-Chrome-Plating.
