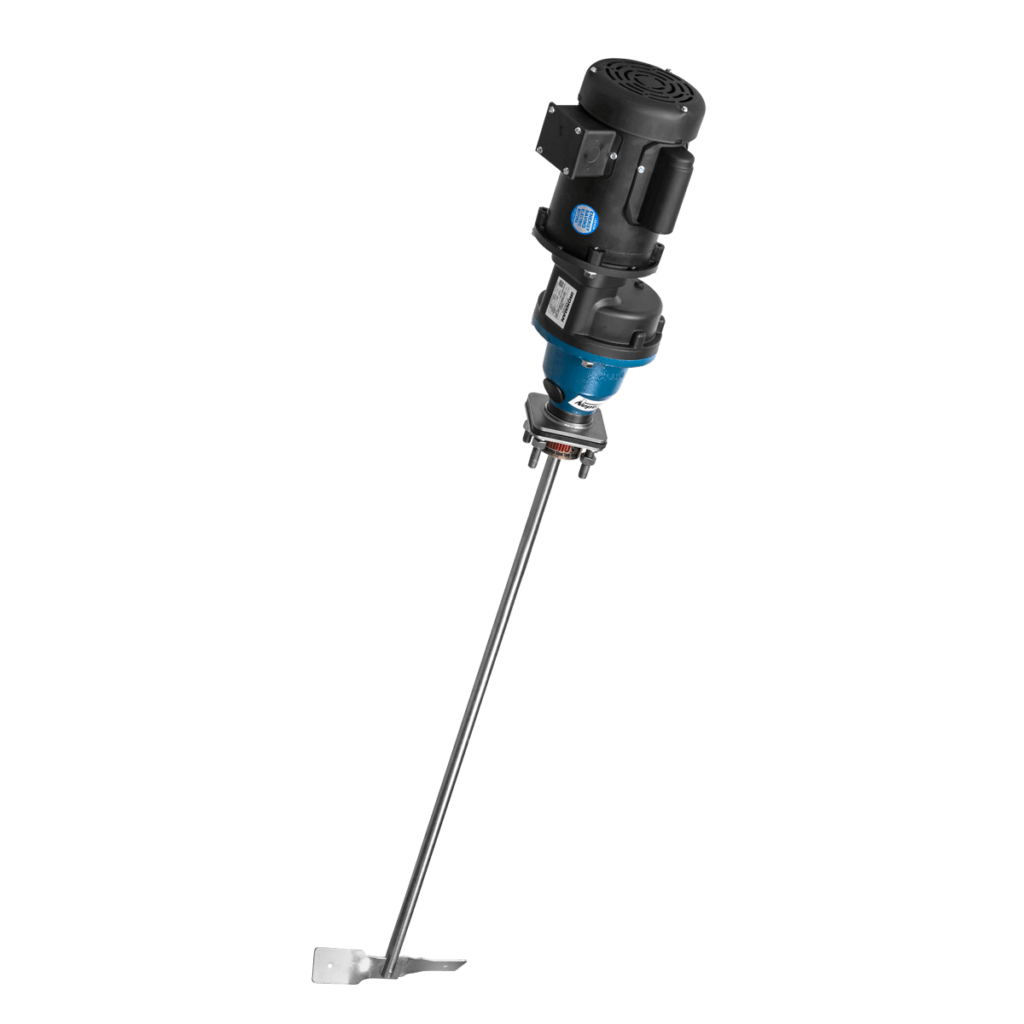

H and HGS Series
Manufacturer: Neptune Mixer
Neptune offers a complete line of bung entering drum mixers. Neptune’s E and F Series drum mixers are equipped to handle low viscosity/water-like liquids that use a folding propeller for proper drum installation. Neptune’s H and HGS Series are equipped with permanent blades to have the capability to handle more viscous fluids up to 32,000 cPs. All drum series mixers fit through the standard 2" (51 mm) bung on 55-gallon (208 liter) drums.
• Air control valve included to allow speed adjustment
• Motor may be stalled without damage
• Motor may be stalled without damage
PROPELLER AND SHAFT MATERIAL316SS as standard
HOUSING MATERIALCast aluminum
MOTORSTotally-Enclosed Fan-Cooled, Explosion-Proof Enclosures Class 1 Group D, Air Motor
SHAFT LENGTH29" (737 mm) to 33-1/8" (838 mm)
SHAFT DIAMETER5/8" (16 mm)
PROPELLER SIZE3-3/4" (95 mm)
