ES Series
Manufacturer: Clay-Greene

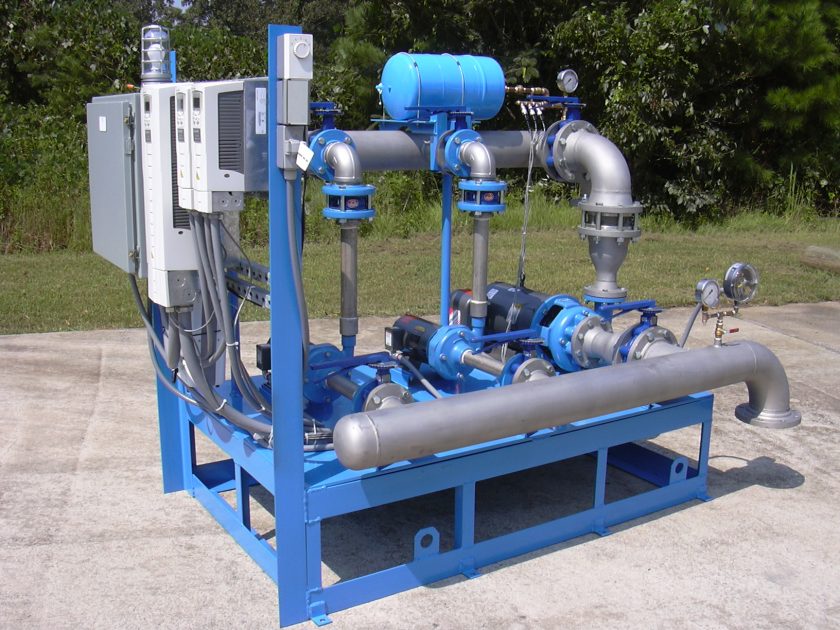

One of our most cost effective packages, the ES Series is perfect for projects where guaranteed results and ease of installation are priorities. Its requirements are only a foundation slab, a connection to suction and discharge lines and power. Utilizing variable frequency drives, the booster station solves the problem of low-pressure areas, tank filling and water transfer.
Perfect for tank fill or tank mixing applications.
Available in Tilt-up Fiberglass Pre-cast concrete or Fiberglass walk-in enclosures pre-wired with lighting, outlets and HVAC. Available with optional features including roof hatches, overhead cranes and roll-up doors.
Simplex/Duplex/Triplex configurations.
Constant Pressure or Constant Flow.
Variable Frequency Drives with transducer control.
Pressure Switch controlled with adjustable deadband.
Relief & Surge line options.
Hydro-pneumatic tank (for low-flow conditions).
U.L. listed 508 control panels meet NEMA 4x.
Optional Integral flow meters (mag and propeller) and Strainer.
UL Listed and NSF-61 Compliant packages.
Available in Tilt-up Fiberglass Pre-cast concrete or Fiberglass walk-in enclosures pre-wired with lighting, outlets and HVAC. Available with optional features including roof hatches, overhead cranes and roll-up doors.
Simplex/Duplex/Triplex configurations.
Constant Pressure or Constant Flow.
Variable Frequency Drives with transducer control.
Pressure Switch controlled with adjustable deadband.
Relief & Surge line options.
Hydro-pneumatic tank (for low-flow conditions).
U.L. listed 508 control panels meet NEMA 4x.
Optional Integral flow meters (mag and propeller) and Strainer.
UL Listed and NSF-61 Compliant packages.
Tank Fill
Tank Mixing
General Boosting Service
Seal Water Skids
Water Mist Applications
Flows- Low to Medium
Heads- Low to Medium
