Chemflo 2 CC

Manufacturer: MP Pumps

1-1/2" x 1" Chemical Pump

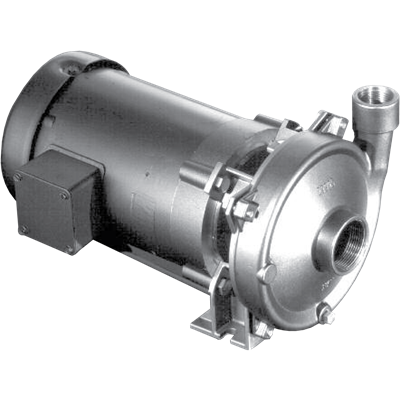

CHEMFLO® 2 CC
The CHEMFLO®2 CC was designed to pump harsh chemical compounds. Internal components made out of 316 stainless steel make chemical pumping possible for this end suction centrifugal pump. To allow larger solids to pass through, a semi-open designed impeller is included standard.

Made with high quality investment cast 316 stainless steel components, the ChemFlo® series of pumps are designed to be applied in a wide range of pumping applications where stainless steel is required.
ChemFlo® 2 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes. Several seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal.
ChemFlo® 2 pumps are offered in two configurations, pump (with motor) and PumPAK® (without motor) versions. Motors available are 56C and 145TC. If ordering a PumPAK for a 145TC motor please note that the electric motor must have a base.
Other drive options are available. Further expanding the versatility of the ChemFlo® series is the CFB 2 pump, a ChemFlo® 2 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications.

SUCTION AND DISCHARGE1-1/2" x 1" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTION316 stainless steel, CFB (nickel aluminum bronze)

FLOWUp to 100 GPM

HEAD FEETUp to 108'

IMPELLER5.25" semi-open, cast 316 stainless steel

MOTORUp to 3 HP

DRIVE OPTIONSClose coupled 56C, Close coupled 145TC, Pedestal, PumPAK® (without motor)

SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton

DRIVE SLEEVE316 stainless steel

OPTIONSTHydraulic motor .22 cu. in., Hydraulic motor .37 cu. in., Tap for recirculation or seal flush
