Chemflo 1 CC

Manufacturer: MP Pumps

1-1/2" x 1" Chemical Pump

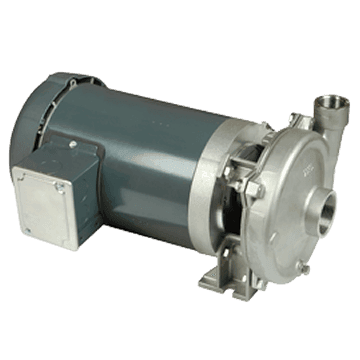

CHEMFLO® 1 CC
A semi-open impeller design is implemented into this end suction centrifugal pump system. 316 stainless steel parts make this chemical pump durable, even when dealing with highly toxic materials. Multiple seal options are available for the CHEMFLO® 1 CC, making it a versatile product that can be used across multiple applications.
ChemFlo® 1 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes and a totally enclosed impeller to meet high efficiency standards. Several seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal.
ChemFlo® 1 pumps are offered in two configurations, pump (with motor) and PumPAK® (without motor) versions. Motors available are 56C and 145TC. If ordering a PumPAK for a 145TC motor please note that the electric motor must have a base.
Other drive options are available. Further expanding the versatility of the ChemFlo® series is the CFB 1 pump, a ChemFlo® 1 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications.

SUCTION AND DISCHARGE1-1/2" x 1" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTION316 stainless steel, CFB (nickel aluminum bronze)

FLOWUp to 100 GPM

HEAD FEETUp to 140'

IMPELLER6" semi-open and enclosed, optional cast 316ss

MOTORUp to 3 HP
