CFX 75 P

Manufacturer: MP Pumps

1" x 1" Chemical Pump
CFX 75 P

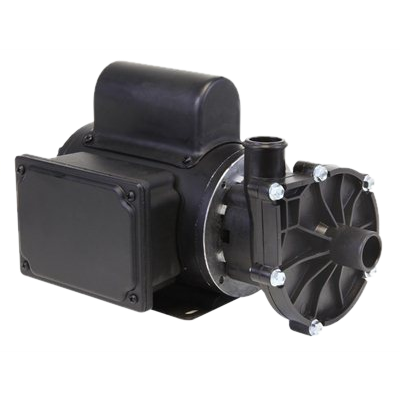

The CFX 75 P chemical pump is a high performance polyphenylene sulfide pump. This end suction centrifugal pump has components built from state of the art anti-corrosion materials, known as 316 stainless steel. This versatile chemical pump can be put to use in a number of different industries.
The CFX 75 P model features a polyphenylene sulfide pump with a 316 stainless steel impeller for superior corrosion resistance. A carbon/ceramic/Viton bellows shaft seal is standard. Ports are 1″ hose connections. Marine ignition protected motors available. Pump can be rotated in 90° increments.

APPLICATIONAgricultural, Commercial, Industrial, Marine

IMPELLER316 Stainless steel, Semi-Open (Sintered PM)

MOTOR115VAC, ODP and TENV, 230VAC TENV, 12VDC, 24VDC

SEALSpecial seals upon request, Standard carbon/ceramic/Viton Bellows 150 PSI

COVERPolyphenylene Sulfide

O-RINGViton, EPDM

PORT SIZES1" Hose Connections

HOUSINGPolyphenylene Sulfide

TEMPERATURETo 220 F (104 C)

WEIGHTSPump W/AC Motor 13 lbs., Pump W/DC Motor 7.5 lbs.
