CFX 125

Manufacturer: MP Pumps

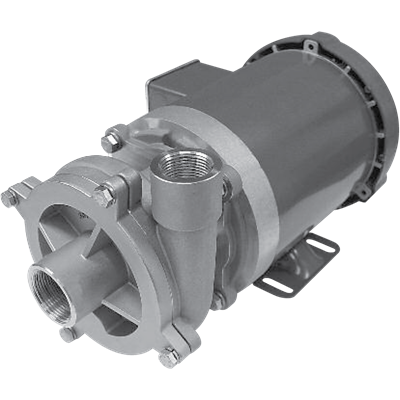

1-1/4" x 1" Chemical Pump
CFX 125
This end suction centrifugal pump is a perfect fit for all agricultural, marine, commercial, and industrial applications. Every CFX 125 chemical pump includes a carbon / ceramic / Viton bellows shaft seal. With that, tough, anti-corrosive 316 stainless steel parts on this centrifugal pump prevent the harmful chemicals from running their course on the metal.

All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard with optional seals available on request. The CFX 125 model is available with 1-1/4” x 1” NPT port configurations. Pump rotation in 90° increments.

SUCTION AND DISCHARGE1" NPT x 1" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine

MATERIALS OF CONSTRUCTION316 stainless steel

FLOWUp to 80 GPM

HEAD FEETUp to 87'

IMPELLER4.76" 316 stainless steel enclosed (investment cast)

DRIVE OPTIONSClose coupled 115V AC, Close coupled 230V AC, Pedestal

SEALCarbon / Ceramic / Viton, Carbon / ceramic / Viton bellows 150 PSI, Special seals upon request
