CFX 100

Manufacturer: MP Pumps

1" x 1" Chemical Pump
CFX 100

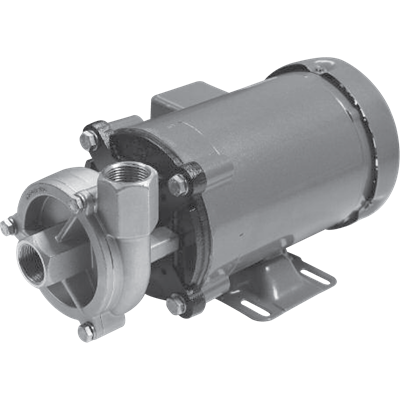

The CFX 100 316 stainless steel end suction centrifugal pump is ideal for hard-to-handle applications in the marine, commercial, and industrial markets. The special steel on this chemical pump severely restricts the amount of corrosion that certain chemicals can inflict on the system. Each CFX 100 chemical pump comes with a carbon / ceramic / Viton bellows shaft seal to maximize efficiency.

All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard with optional seals available on request. The CFX 100 model is available with 1” NPT port configurations. Pump rotation in 90° increments.

SUCTION AND DISCHARGE1" NPT x 1" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine

MATERIALS OF CONSTRUCTION316 stainless steel

FLOWUp to 40 GPM

HEAD FEETUp to 54'

IMPELLER3.75" 316 stainless steel

DRIVE OPTIONSClose coupled 115V AC, Close coupled 230V AC, Close coupled 24V DC, Pedestal

SEALCarbon / ceramic / Viton bellows 150 PSI, Special seals upon request
