2CT-3

Manufacturer: MP Pumps

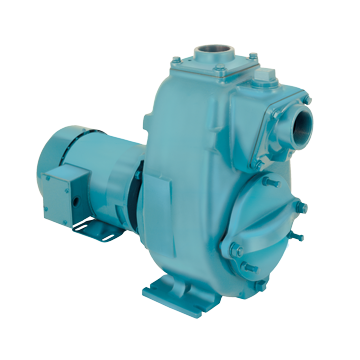

3" x 3" Trash Pump
2CT-3

The 2CT-3 self priming centrifugal pump is equip with both a back pull-out design and a front trash cleanout to ensure less downtime during maintenance schedules. The trash pump is compatible with an 184TC or 215TC motor frame. The utilization of a 304SS drive sleeve on this trash pump ensures optimum protection of the coupled driver shaft. Options for this specific trash pump include a bearing pedestal and a hydraulic motor drive pedestal.

SUCTION AND DISCHARGE3" x 3" NPT

APPLICATIONCommercial, Industrial, OEM

MATERIALS OF CONSTRUCTIONCast iron

FLOWUp to 400 GPM

HEAD FEETUp to 125'

IMPELLER5.82" ductile iron

MOTORUp to 10 HP

DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Close coupled 145TC, Pedestal, PumPAKĀ® (without motor)

SEALStandard carbon / ceramic / Viton

MAX SOLID SIZE1.5"

FEATURESBack pull out design, Removeable trash cleanout, Will pass up to 1.5" solids

DRIVE SLEEVE304 Stainless Steel
